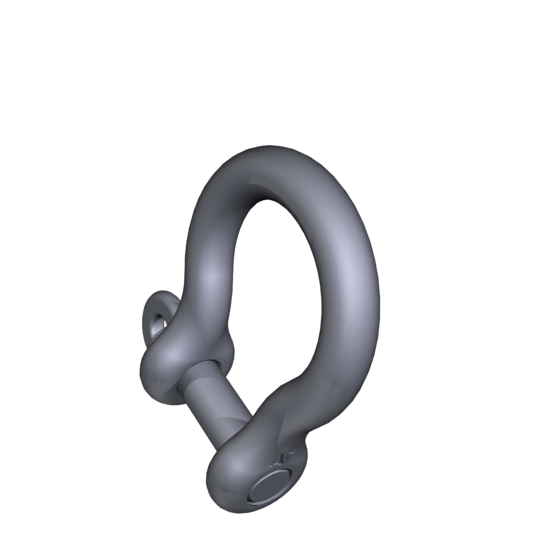

    Item # 0076468: 5/8 inch Investment Cast 6Al-4V Allied Titanium Bow Shackle with captive locking pin, 1.25 inch jaw width and 2.875 inch jaw depth from the inside of the pin, Grade 5 (Ti-6Al-4V) Titanium with Sandblasted Finish
Titanium 5/8 inch Investment Cast 6Al-4V Allied Titanium Bow Shackle with captive locking pin, 1.25 inch jaw width and 2.875 inch jaw depth from the inside of the pin
  Titanium is an element and has the highest strength to weight ratio of any metal. It is also completely corrosion free in the natural environment.

This shackle is forged out of 6Al-4V titanium. 6Al-4V titanium is a common aerospace alloy that has a yield strength* 3-1/2 times greater than 316 stainless steel, while being 44% lighter.

With an amazing breaking strength of greater than ? pounds (? kg), this shackle has been load tested to ? pounds (? Kg) during inspection.

The pin is captive in the shackle body, but can be unscrewed for complete removal. There is also a locking mechanism built in that will prevent the pin from coming loose after being tightened with a tool.

For use of this product in critical applications, you should be advised to consult with an engineer before putting it into service.

*Yield Strength: The pressure at which a material will deform and be unable to return to its original shape.
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 100
1st Qty Break: 1000
1st Break Price: Call (302) 249-3295
2nd Qty Break: 2500
2nd Break Price: Call (302) 249-3295
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.3193
Measure: Inches
Diameter or Thickness: 0.625
Pitch, Grip Length or Width: 1.25
Length: 2.875
Group: Marine
Category: Shackle, Cast
Sub Category: Shackle, Bow Normal
Tolerance: +/- 0.005 inch
UPD # Ti5SCBNI0.625X1.25X2.875B
